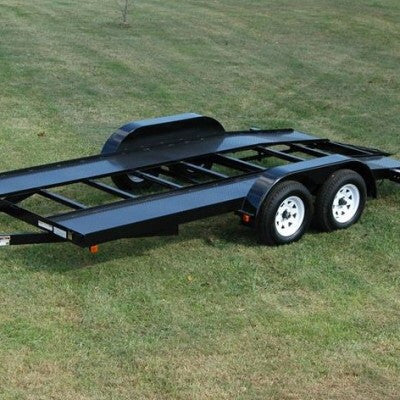

Weld your own - 16 FOOT CAR HAULER TRAILER - from plans!

These Steel Deck Car Hauler Welding Project Plans show you how to build from scratch and use salvaged parts, scrap steel and more! All of the parts are available as new but for those like me who want to save money where possible, scrap steel can be just as good for a considerably lower price.  These plans cover everything you need to build your own car hauler including: Brakes, Electrical wiring, Lights, Materials, DOT Laws, Safety, and much more.

These Car Trailer Plans meet DOT regulations for overall max legal width and make licensing a breeze!

You will not find a more complete set of welding project plans anywhere!

CAR TRAILER SPECIFICATIONS:

English and Metric Dimensions.
Individual piece part drawings
Exploded views
Assembly drawings
– Tires: 225/75D15 Load Range “D”
– Rims: 15″ White Spoke

– (2) Rear ramps 15″ x 48″ (Slide underneath trailer for storing)

– 1/8″ Thick metal 4-way safety plate decking

– 11″ Front rail

– Inside trailer width:  80″

– Inside trailer length: 16′

– Gross vehicle weight rating: 7,000 LBS.

– (2) 3,500 lb. axles

– 2-5/16″ Coupler

– 5,000 LB.  Tongue Jack

– 5″ X 3″ X 1/4″ Angle main frame

80″ x 16′ Trailer is designed with heavy angle iron frame and channel frame tongue with 1/8″ thick metal decking.

Fenders with DOT approved lighting.  Round tube dual axle with (2) 3,500 Lb. leaf spring suspension.

Hydraulic surge brake or Electric brake option

15″ wheels and tires. Safety chains with latch.

Regular price $ 0.00 Sale price $ 19.97
